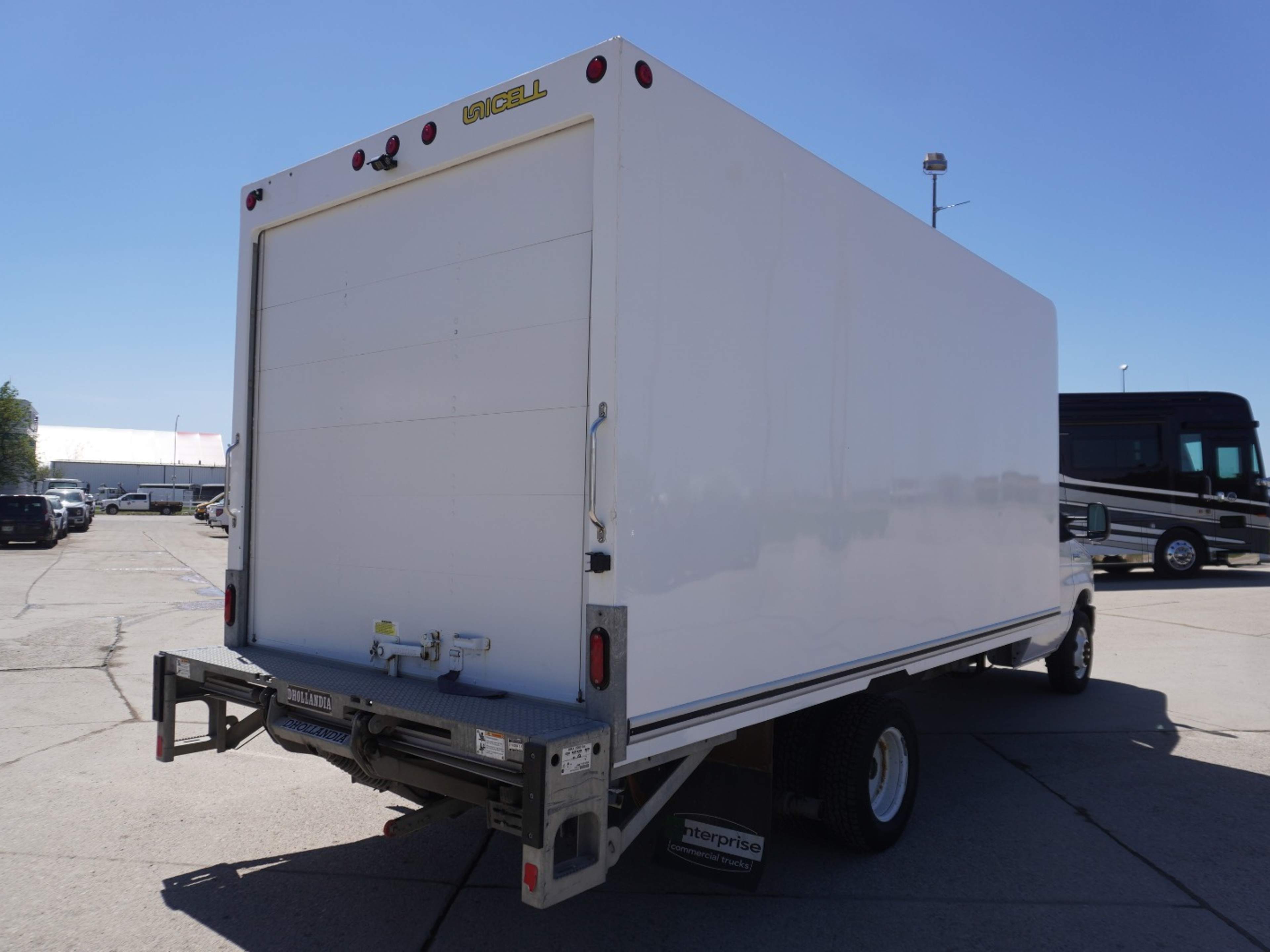

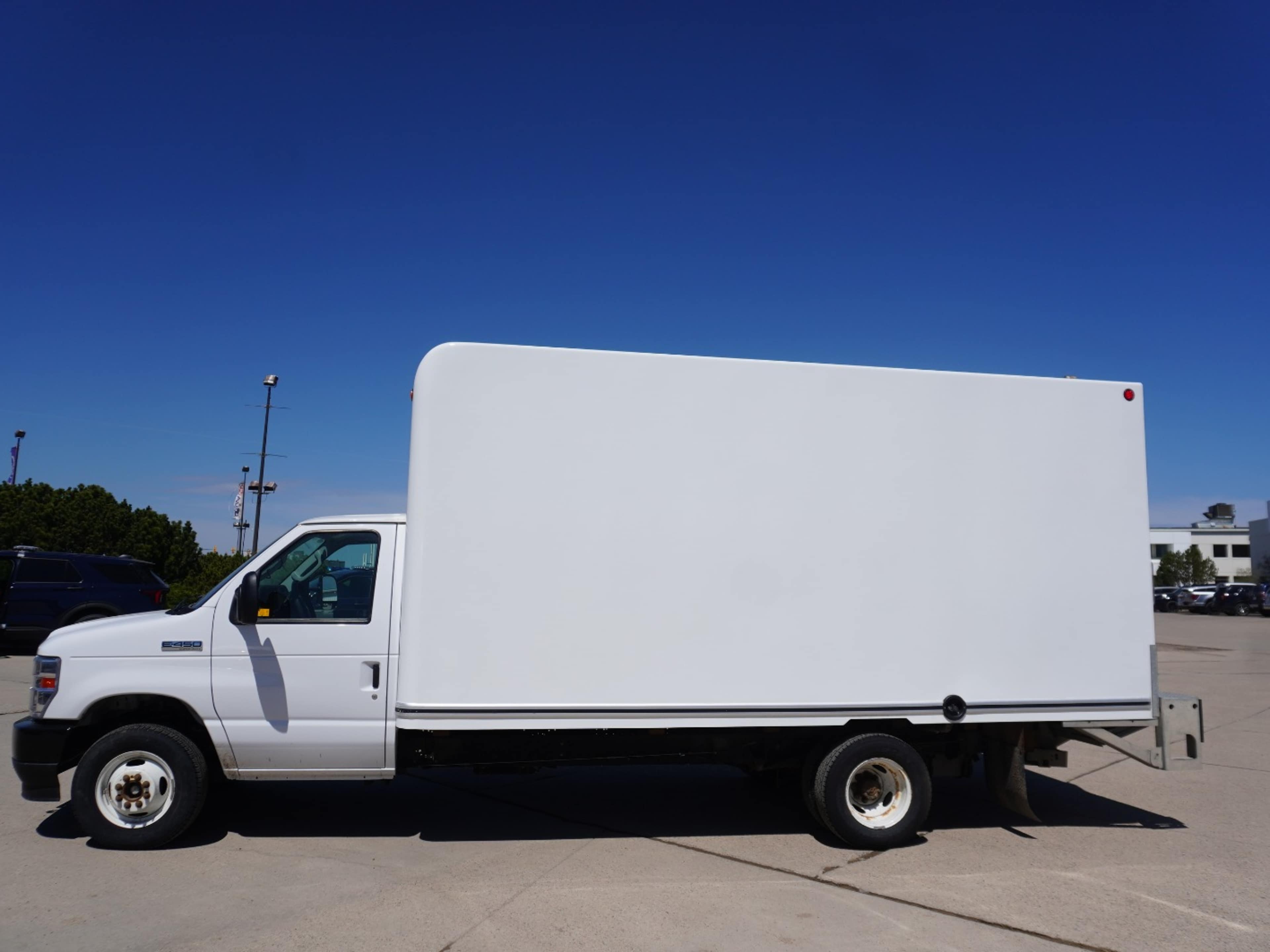

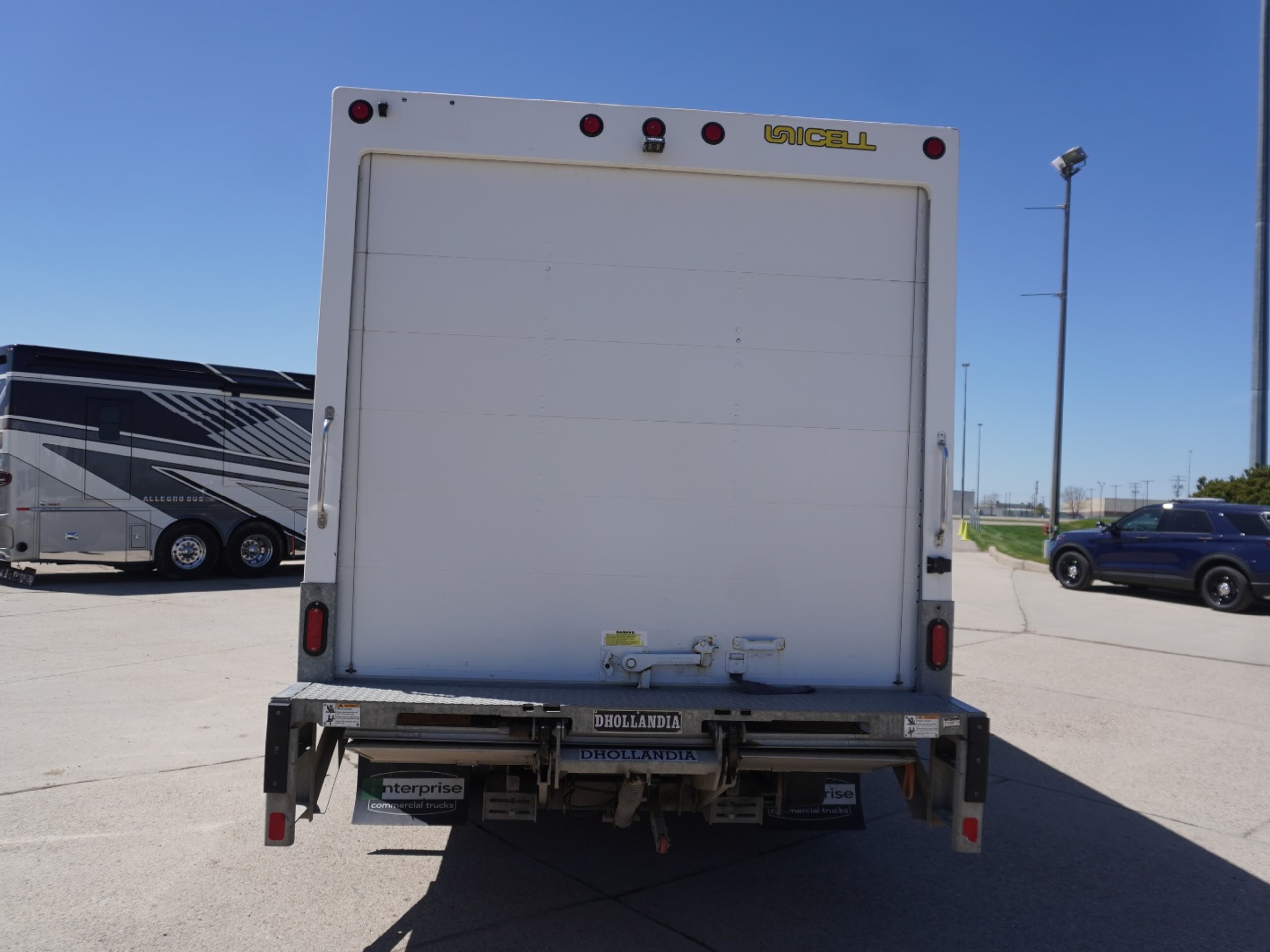

2023 Ford E-Series Cutaway

• Manual climate control
• Climate control
• Front vinyl floor covering
• Front floor coverage
• Cloth front seat upholstery
• Cloth front seatback upholstery
• Bucket front seats
• Driver seat with 4-way directional controls
• Front passenger seat armrest
• Front passenger seat with 4-way directional controls
• Driver seat manual reclining and fore/aft control
• Passenger seat manual reclining and fore/aft control
• Fixed front seat head restraints
• Driver seat armrest
• Urethane gear shifter material
• Light tinted windows
• Vinyl headliner material
• Front headliner coverage
• 2-Passenger Seating
• Manual tilting steering wheel
• Manual telescopic steering wheel
• Urethane steering wheel

• Partial floor console
• Floor console storage
• Cruise control with steering wheel mounted controls
• Mechanical
• Power door locks
• Power door mirrors
• Manual folding door mirrors
• Tachometer
• Oil pressure gauge
• Engine/electric motor temperature gauge
• Voltmeter
• Digital clock
• Engine temperature warning
• Battery charge warning
• Low level warning for fuel
• Key in vehicle warning
• Service interval indicator
• Oil pressure warning
• Headlights on reminder
• Trip odometer
• Variable instrument panel light
• Retained accessory power
• 2 12V power outlets
• Front beverage holders
• Standard glove box
• 2 beverage holders
• Driver and passenger door bins
• Power first-row windows
• Driver one-touch down window
• Variable intermittent front windshield wipers
• Sun visor strip

• Fully galvanized steel body panels with side impact beams
• Black front bumper
• Black front bumper rub strip
• 2 doors
• Black grille
• Manual extendable trailer mirrors
• Black door mirrors
• Non-metallic paint
• Monotone paint
• LT225/75SR16 AS BSW 709 RPM front and rear tires
• Black side window trim
• Black door handles
• Black windshield trim
• 16 x 6-inch front and dual rear painted steel wheels
• Dual rear wheels

• Fixed audio antenna
• Wireless audio streaming
• AM/FM
• External memory control
• Seek scan
• Standard grade speakers
• 2 speakers

• Heavy-duty alternator
• Heavy-duty lead acid battery
• Front ventilated disk brakes
• Three channel ABS brakes
• Rear-wheel drive
• All-speed ABS and driveline traction control
• Mechanical limited slip differential
• ICE
• 7.3L V-8 variable valve control, regular unleaded, engine with 300HP
• 7.3L V-8
• Front mounted engine
• Spark ignition system
• Longitudinal mounted engine
• Iron engine block
• Aluminum cylinder head
• V8
• Engine block heater
• Radiator
• Stainless steel single exhaust
• Regular Unleaded
• Hydraulic power-assist steering system
• Re-circulating ball steering
• Standard ride suspension
• Independent front suspension
• Front anti-roll bar
• Front coil springs
• Heavy-duty gas-pressurized shock absorbers
• Rigid axle rear suspension
• Rear anti-roll bar
• Rear leaf springs
• Regular grade rear springs
• Leaf spring rear suspension
• 6-speed automatic
• Selectable mode transmission
• Transmission electronic control
• Automatic
• Lock-up transmission
• Overdrive transmission
• Transmission oil cooler

• 2 airbags
• Driver front impact airbag
• Passenger front impact airbag
• 4-wheel disk brakes
• 4-wheel antilock (ABS) brakes
• Reflector headlights
• Halogen headlights
• Auto on/off headlight control
• Multiple enclosed headlights

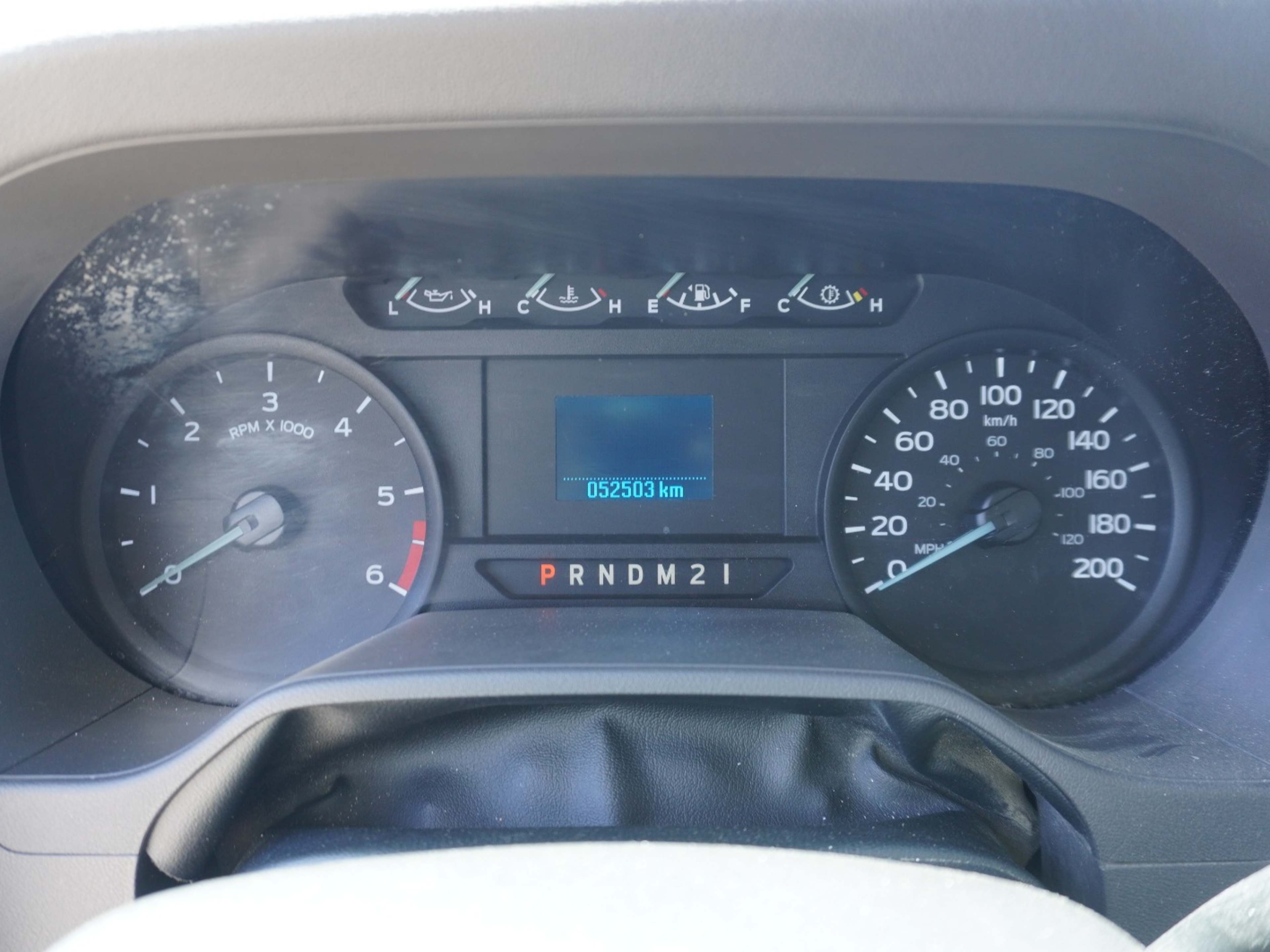

• Analog instrumentation display
• Daytime running lights
• Driver and passenger convex spotter mirrors
• Front height adjustable seatbelts
• Front seatbelt pretensioners
• 2 seatbelt pre-tensioners
• Vehicle tracker
• Electronic stability control system
• Hill start assist

• Handsfree wireless device connectivity
• Mobile app access
• Selective service internet access
• 2 USB ports

Engine

Valves per cylinder

2

Engine Cylinders

8

Injection Type

Sequential MPI

Engine specs

Displacement liters

7.3 L

Bore

4.21 "

Stroke

3.98 "

Compression ratio

10.5

Horsepower

300 HP

SAEJ1349

AUG2004 compliant

Torque

577 Nm

Displacement cubic inch

445 cu.in.

Alternator

Alternator Amps

210 A

Battery

Battery rating

750 CCA

Battery Amps

78 Ah

Transmission

First gear ratio

3.974

Second gear ratio

2.318

Third gear ratio

1.516

Fourth gear ratio

1.149

Fifth gear ratio

0.858

Sixth gear ratio

0.674

Reverse gear ratio

3.128

Stall ratio

1.9

Transmission Speeds

6

Tires

Front tire width

8.9 "

Front tire aspect ratio

75

Front tire diameter

16.0 "

Rear tire width

8.9 "

Rear tire aspect ratio

75

Rear tire diameter

16.0 "

Front tires LT load rating

E

Rear tires LT load rating

E

Drivetrain

Axle ratio

4.56

Brakes

Front brake diameter

345 mm

Rear brake diameter

345 mm

Fuel

Fuel tank capacity

208.2 litres

Climate control

Air Conditioning

Air Conditioning

Weights

GVWR

6,350 kg

GAWR front

2,087 kg

GAWR rear

4,354 kg

Axle capacity front

2,268 kg

Axle capacity rear

4,354 kg

Spring rating front

2,087 kg

Tire/wheel capacity rear

4,481 kg

Standard payload

3846.5 kg

Rear frame height loaded

26 "

Trailering

Towing capacity

3,402 kg

Max gross combined weight rating

9,979 kg

Interior measurements

Leg room first-row

1069.3 mm

Head room first-row

1066.8 mm

Hip room first-row

1666.2 mm

Shoulder room first-row

1729.7 mm

Exterior measurements

Vehicle body length

6631.9 mm

Vehicle body width

2016.8 mm

Vehicle body height

2042.2 mm

Wheelbase

4470.4 mm

Vehicle turning radius

9.19 m

Front track

1762.8 mm

Rear track

1973.6 mm

Loading floor height

26 inches

Fuel economy

Fuel economy fuel type

Regular Unleaded

null

Cab to axle

2997.2 mm

Axle to end of frame

1739.9 mm

Frame section modulus

104.9 cm^3

Frame yield strength (psi)

36000

Cab to end of frame

4279.9 mm

Front bumper to back of cab

2349.5 mm
